Burr King - Model 12 - 12″ Disc Grinder

Info
Burr King’s family of disc grinders/sanders provides maximum versatility.
Constructed of rugged cast aluminum and precision machined components, every Burr King grinder delivers unexcelled grinding performance and reliability.
Available in easily adjusted variable speed and aggressive single speed.
Model 12 disc grinder/sander can be pedestal or bench mounted and uses a standard 12″ disc pad
- Rigid cast aluminum construction
- Cast iron work table
- Precision billet aluminum disc
- Forward / Reversing switch
- Easy disc change with unique swing-away feature
- Large throat clearance for enhanced workpoint access
- Multiple motor configurations and HP
- Optional variable speed, 3 phase motor & controls

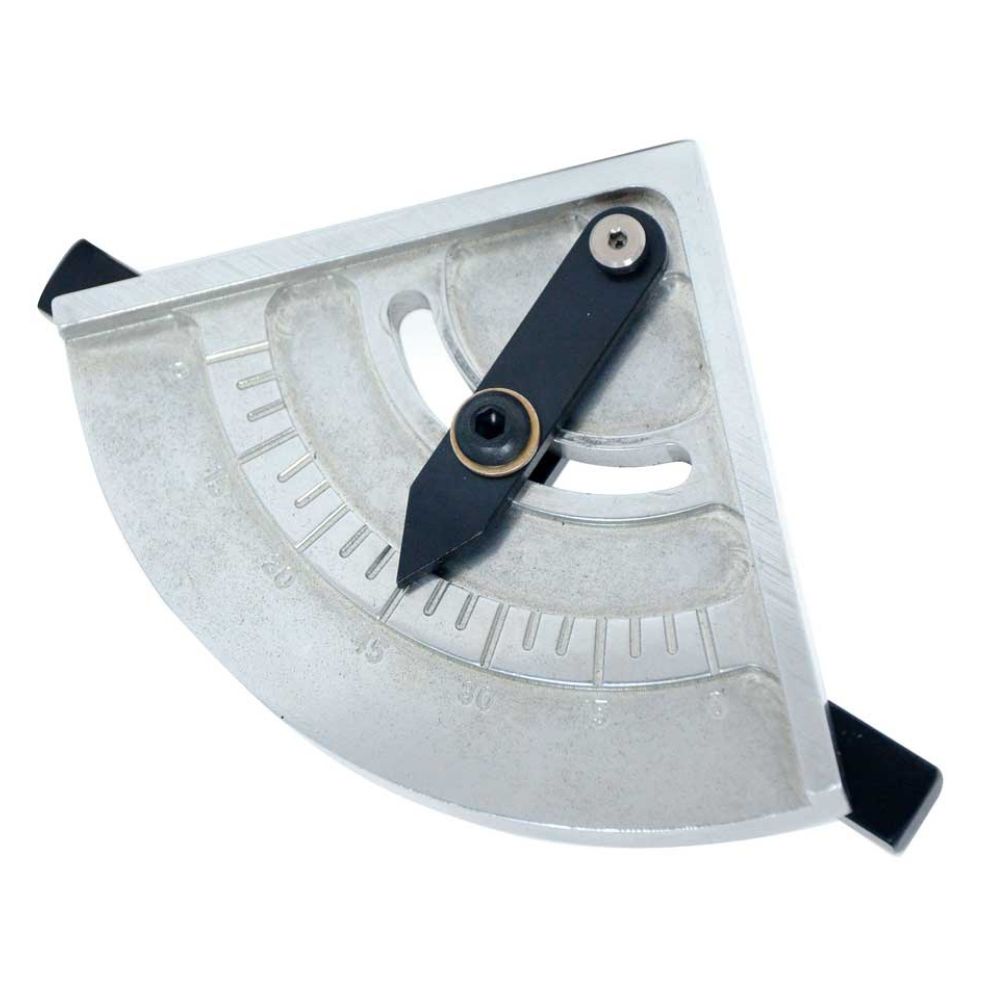

- MA12 Optional Miter Attachment
- Use with 02-7 Fixed Height Pedestal
or Adjustable Pedestal – Contact Factory
Pedestal is optional, and not included.
*Includes magnetic starter (NEMA 12) and controls without power cord.
All Burr King machines are available in a wide variety of power options. Don't hesitate to get in touch with us for a special quote if your power requirement is not listed.
Details
Hz | Disc Size | HP | Speed Fixed | Volt/Phase | Speed Variable |
---|---|---|---|---|---|
60 | 12 | 1.0 | 1725 RPM | 120/1 | No |
60 | 12 | 1.5 | 1725 RPM | 120/1 | No |
60 | 12 | 1.5 | No | 120/1 | 0-1725 RPM |
*Includes magnetic starter (NEMA 12) and controls without power cord.
Additional Specifications
Voltage | 120v / 1Phase |
Motor HP | 1.0HP or 1.5HP |
Wheels | 1 |
Disc Wheel Size | 12″ |
Safety Guard | Yes |
Adjustable Work Rest | Yes - Cast Iron |
Construction | Cast Aluminum |
Mount | Bench or Pedestal Mounted |
Process Evaluation | Cast iron work table |
Pedestal Included | No |
Main Application | Disc Grinding |
